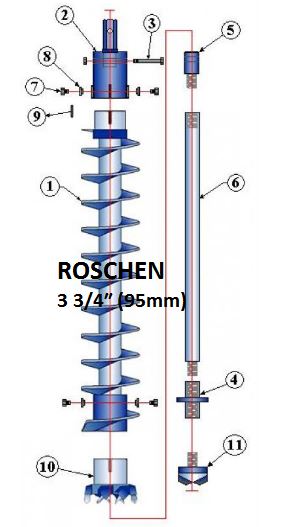

Auger Section

1

3 3/4″ (95mm)   DK HD Hollow Stem Auger 3 3/4″ (95mm) I.D. x 7 1/8″ (181mm) O.D. x 5′   (1524mm)

84

38.1

2

3 3/4″ (95mm)   DK HD Drive Cap with 1 5/8″ (41mm) Hex Pin

25

11.3

2

3 3/4″ (95mm)   DK HD Drive Cap with 2″ (51mm) Hex Pin

28

12.7

3

#4 Nut &   Bolt for Rod-to-Cap Adapter

0.9

0.4

4

3 5/8″ (92mm)   Pilot Bit Connector (AW Box – 2 3/8″ API Reg. Box)

8

3.6

4

3 5/8″ (92mm)   Pilot Bit Connector (AWJ Box – 2 3/8″ API Reg. Box)

11

5

4

3 5/8″ (92mm)   Pilot Bit Connector (NW Box – 2 3/8″ API Reg. Box)

11

5

4

3 5/8″ (92mm)   Pilot Bit Connector (NWJ Box – 2 3/8″ API Reg. Box)

12

5.4

5

Rod-to-Cap   Adapter – AW Pin

3

1.4

5

Rod-to-Cap   Adapter – AWJ Pin

3

1.4

5

Rod-to-Cap   Adapter – NW Pin

7

3.2

5

Rod-to-Cap   Adapter – NWJ Pin

6

2.7

6

AW Drill Rod –   5′ (1524mm)

21

9.5

6

AWJ Drill Rod   – 5′ (1524mm)

23

10.4

6

NW Drill Rod –   5′ (1524mm)

31

14.1

6

NWJ Drill Rod   – 5′ (1524mm)

35

15.9

Auger Repair   Parts

1A

3 3/4″ (95mm)   DK HD Pin Tool Joint

8

3.6

1B

3 3/4″ (95mm)   DK HD Box Tool Joint

7

3.2

7

ALB3 Auger   Lock Bolt

0.4

0.2

8

ABN3 Auger   Bushing Nut

0.2

0.1

9

ADK2 Auger   Drive Key

0.3

0.1

Auger   Cutterheads and Pilot Bits

10

3 3/4″ (95mm)   DK HD Blade Cutterhead – 8 1/2″ (216mm) O.D.

16

7.3

10

3 3/4″ (95mm)   DK HD Spade Cutterhead – 8 1/2″ (216mm) O.D.

20

9.1

10

3 3/4″ (95mm)   DK HD Blade/Bullet Cutterhead – 8 1/2″ (216mm) O.D.

20

9.1

10

3 3/4″ (95mm)   DK HD Spade/Bullet Cutterhead – 8 1/2″ (216mm) O.D.

22

10

10

3 3/4″ (95mm)   DK HD Bullet Cutterhead – 8 1/2″ (216mm) O.D.

22

10

10

3 3/4″ (95mm)   DK HD 5-T Cutterhead – 8 1/2″ (216mm) O.D.

22

10

11

3 5/8″ (92mm)   Apex Pilot Bit, 2 3/8″ API Reg. Pin

5

2.3

11

3 5/8″ (92mm)   Bullet Pilot Bit, 2 3/8″ API Reg. Pin

8

4.1
