Mazier 131 mm
ROSCHEN
Mazier -131 , Mazier- 146, Mazier- 86, Mazier- 101,
Product Description

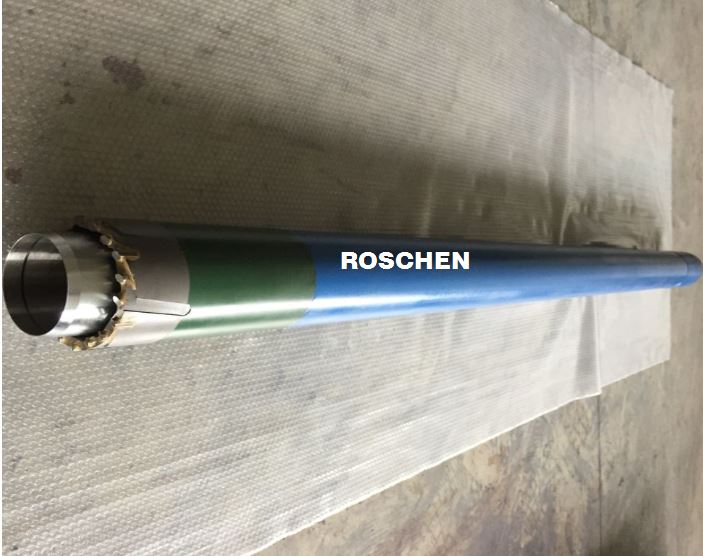

Mazier 131 mm Core Barrel Taking UnDisturbed Soil Sampler Equipment
Mazier 101 mm Core Barrel Taking UnDisturbed Soil Sampler Equipment
Mazier Core Barrel
Size | OD(mm) | ID(mm) |
101 | 101 | 71.5 |
131 | 129.5 | 99 |

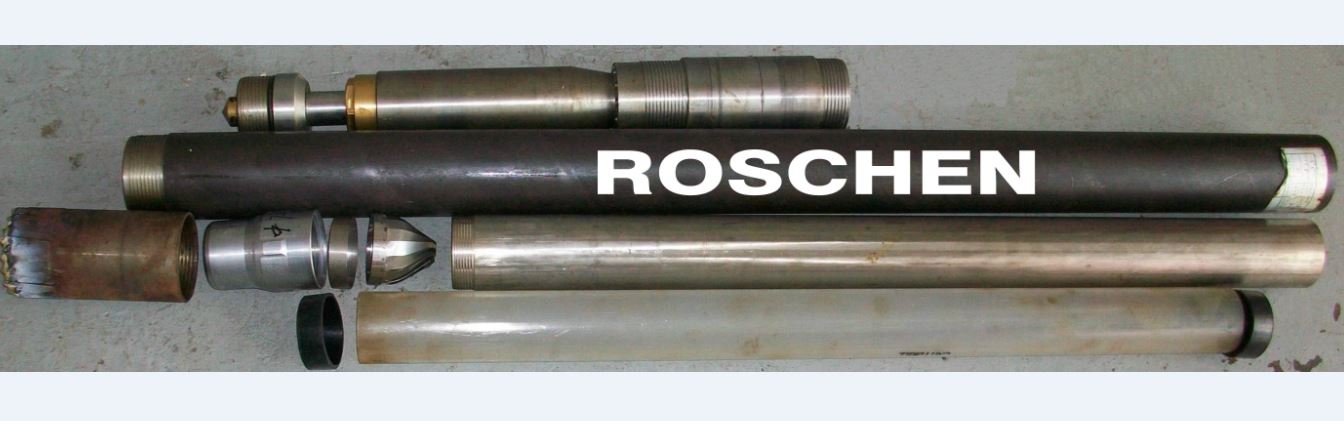

Components:
Sediment Tube
Head Assembly
Inner Tuber
Plastic Liner
Spacer
Core Catcher(Option)
Cutting Shoe
Outer Tube
Core Bit
Description:
Mazier core barrel is a single rotary triple tube core barrel with inner tube pull ahead,
There are many kinds of cutting shoe length are available.
Application:
It suitable for clay, mudstone, sandstone and soft rock formation sampling.
The feature of Mazier core barrel is high core recovery and small sample disturbance.
