12 1/4inch IADC 437 TCI Tricone Bit

ROSCHEN is a Rock drilling tools factory / rotary drilling tools manufacture with a complete process line of TCI tricone drill bit, our products are available in new steel tooth and tungsten carbide insert, the TCI tricone bit size is from 3 3/8''(85.7mm) to 26''(660.4mm) for all formations, with any bearing/seal type, and a wide range of additional custom features.

Quantity:
  • 12-1/4'' IADC 437
  • ROSCHEN
  • ROS-TCI-311

Product Description

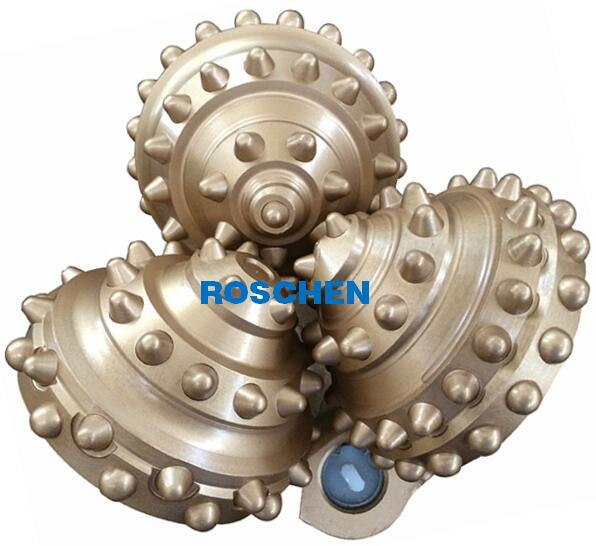

TCI Tricone Bit 12-1/4'' IADC 437

Product description:



Tricone Roller Bit 12-1/4'' IADC 437 with Tungsten Carbide Inserts



Code No.

ROS-TCI-311

Diameter

12 1/4'' / 311mm

Pin Type Dimensions

6 5/8'' API

Teeth Type

TCI

IADC No

437

Bearing

 Rubber journal sealed bearings.

Rotary Speed

140~60 RPM

Normal WOB

0.35~0.95 KN/mm

Nozzle NO

3



ROSCHEN Tools always has the right Tri Cone Drill Bit for you Whether you are drilling a water well or an oil well.

Depending on your application, we can provide you with new,  premium oil field quality Tricone bits. The difference between a premium oil field Tricone bit and non-premium oil well quality Tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

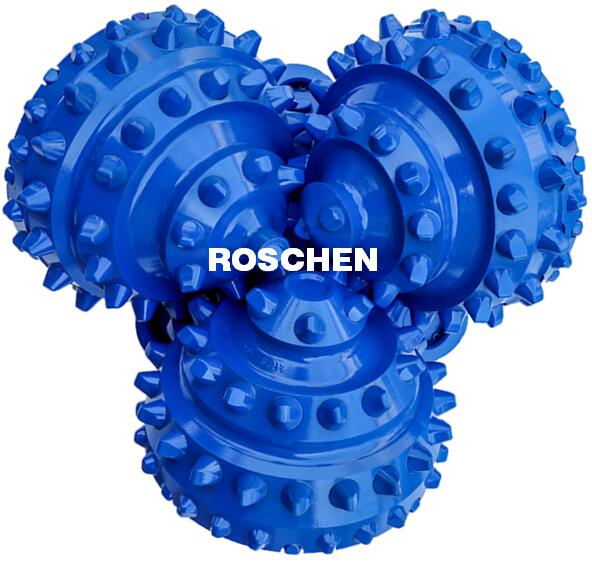

TCI Tricone Rock drill Bits

ROSCHEN offers heavy duty tricone roller bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), International Association of Drilling Contractor number (IADC number) and American Petroleum Industry number (API Number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ROSCHEN can offer tricone bits for all possible combinations of IADC number.

Rock formation

Bit type

Bit size

Drilling weight

Rotary speed

mm

inch

kN/mm

r/min

Very soft

Soft Marl, Clays, Sands, Salts etc.

1

187.3~346.1

7 3/8~13 5/8

441~735

120~50

soft

Clays, Soft Shale, Marl, Sands, Salts etc.

2

95.2~174.6

3 3/4-6 7/8

245-490

100-50

187.3~346.1

7 3/8-13 5/8

490-784

90-40

Medium soft

Shale, Marl, Sandstone, Soft Limestone etc.

3

95.2~174.6

3 3/4-6 7/8

245-490

80-40

187.3~311.1

7 3/8- 12 1/4

490-784

80-40

medium

Hard Shale, Limestone, Medium/Hard Sandstone etc.

4

95.2~174.6

3 3/4-6 7/8

294-539

80-60

187.3~241.3

7 3/8-9 1/2

539-833

60-40

medium hard

Hard Dolomite, Limestone, Hard Sandy, Rock etc.

5

95.2~174.6

3 3/4-6 7/8

294-539

80-60

187.3~241.3

7 3/8-9 1/2

539-833

60-40

hard

Sandy, Shale, Quartzite, Hard Dolomite, Hard Sandstone   etc.

6

95.~-174.6

3 3/4-6 7/8

294-539

80-40

187.3-215.9

7 3/8-8 1/2

580-882

60-40

Very hard

Quartzite, Chert, Basalt Granites, Pyrites etc.

7

95.2-174.6

3 3/4-6 7/8

294-539

80-40

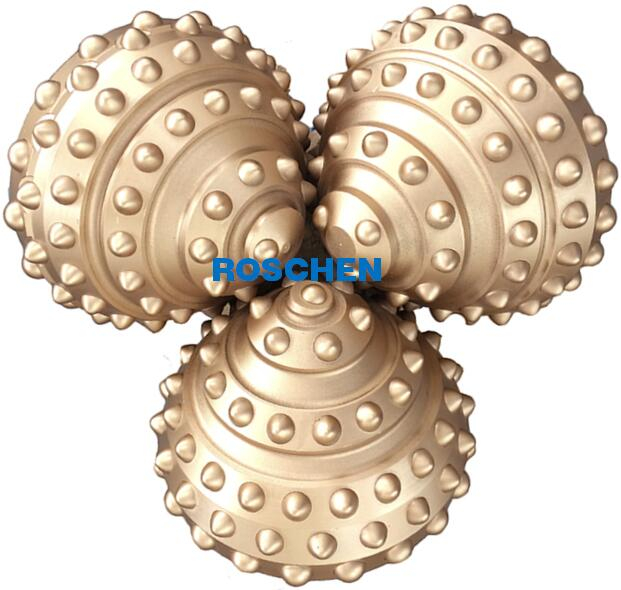

Tricone roller bit



Features:

1. The tricone roller bit working life is according the drilling formation and the drilling rig.

2. Rock formation: Very soft with low compressive strength and high drill ability, such as shale, clay, sandstone and conglomerate, etc.

3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.

4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing area has increased the reliability of the seal.

5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.

6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
