10-5/8 inch IADC 632 TCI Tricone Drill Bit

ROSCHEN offers a full line of tricone bits. Tricone drill bits include two kinds teeth, steel tooth and tungsten carbide insert, size from 3 3/8''(85.7mm) to 26''(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.

Quantity:
  • 10-5/8 inch IADC 632
  • ROSCHEN
  • ROS-TCI-270-632

Product Description

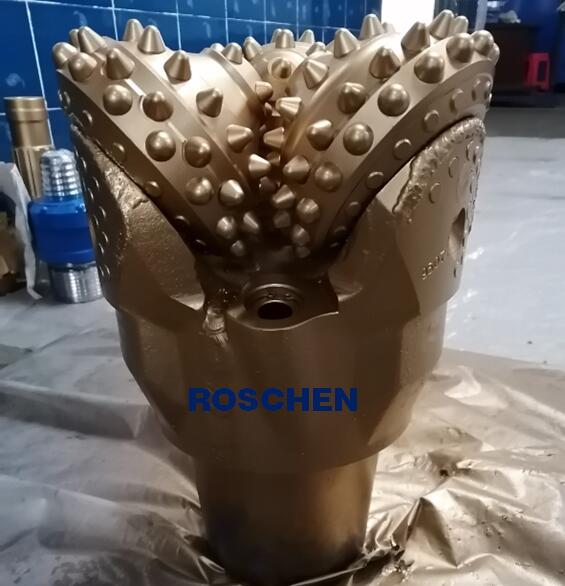

Tricone Drill Bit 10-5/8 inch IADC 632 with Tungsten Carbide Insert


Product Introduction

Size

10 5/8inch

Diameter

270mm

Pin type Dimensions

6 5/8" API

Teeth Type

TCI

IADC Code

632

Tricone Drill Bit Descriptiopn



1)    Cutting Structure

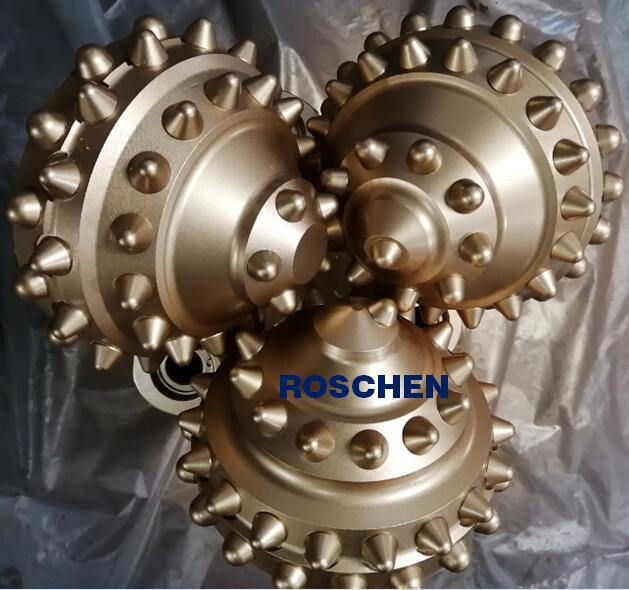

The reamer mainly consists of four or more cones. Cutting Structure with premium tungsten carbide hardfacing or premium tungsten carbide insert of formulas and new techniques is utilized, and increases wear-resistance capability of reamer. The pilot is three cone bit( tricone bit ).

2)    Seal and Lubrication
High performance O-ring for bearing seal and advanced grease for lubrication.


      3) Application
        It is suitable for the large size well, mining and infrastructure applications.
      4) Main Availability, ( Bit sizes and cone types can be customized as you special order)

 TCI tricone bit

TCI Tricone Roller Bits

ROSCHEN offers a full line of tricone bits. Tricone drill bits include two kinds teeth,  steel tooth and tungsten carbide insert, size from 3 3/8''(85.7mm) to 26''(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.



Rotary Drilling Tools: 10-5/8'' IADC Code 632 Tricone Roller Bit with Tungsten Carbide Insert, Sealed Bearings, carbide side friction protection for semi hard to hard rock formation.



Tricone drill bits include Steel Tooth (or milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth bits, but with a higher cost to manufacture. Both types of Tricone Bits are available with

(1) Open Bearing or Sealed Bearing

(2) Roller Bearing or Friction Bearing (Journal Bearing)

(3) Gage Protected or Non-Gage Protected, etc.



ROSCHEN  offers heavy duty tricone bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), American Petroleum Industry number (API Number) and International Association of Drilling Contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. All possible combinations of IADC number for tricone bits are available at ROSCHEN factory
