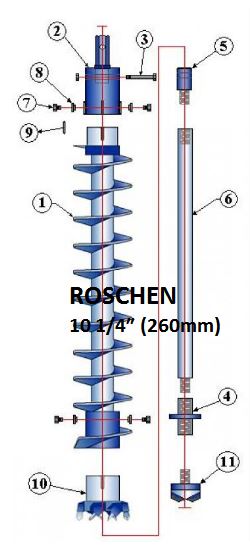

Auger Section

1

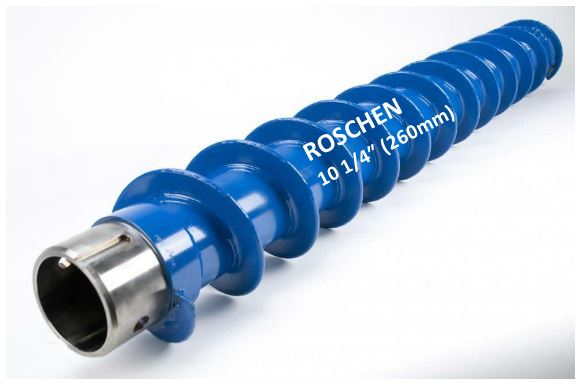

10 1/4″ (260mm) TK HD Hollow Stem Auger 10 1/4″ (260mm) I.D. x 14 1/2″ (362mm) O.D. x 5′ (1524mm)

A1014300HD

265

120.2

2

10 1/4″ (260mm) TK HD Drive Cap with 3 1/4″ (83mm) Auger Connector

ADC101433HD

84

38.1

2

10 1/4″ (260mm) TK HD Drive Cap with 4 1/4″ (108mm) Auger Connector

ADC101434HD

86

39

3

#4 Nut & Bolt for Rod-to-Cap Adapter

ANAB4

0.9

0.4

4

10 1/8″ (257mm) Pilot Bit Connector (NW Box – 3 1/2″ API Reg. Box)

APBC1018NWB

36

16.3

4

10 1/8″ (257mm) Pilot Bit Connector (NWJ Box – 3 1/2″ API Reg. Box)

APBC1018NWJB

36

16.3

5

Rod-to-Cap Adapter – NW Pin

ARCANWP

7

3.2

5

Rod-to-Cap Adapter – NWJ Pin

ARCANWJP

6

2.7

6

NW Drill Rod – 5′ (1524mm)

ADR5NW

31

14.1

6

NWJ Drill Rod – 5′ (1524mm)

ADR5NWJ

35

15.9

Auger Repair Parts

1A

10 1/4″ (260mm) TK HD Pin Tool Joint

ATJ10143PHD

32

14.1

1B

10 1/4″ (260mm) TK HD Box Tool Joint

ATJ10143BHD

31

14

7

ALB4 Auger Lock Bolt

ALB4

0.4

0.2

8

ABN3-M Auger Bushing Nut

ABN3-M

0.2

0.1

9

ADK3 Auger Drive Key

ADK3

0.3

0.1

Auger Cutterheads and Pilot Bits

10

10 1/4″ (260mm) TK HD Blade Cutterhead – 15″ (381mm) O.D.

ACH1014350HD

52

23.6

10

10 1/4″ (260mm) TK HD Spade Cutterhead – 15″ (381mm) O.D.

ACH1014351HD

48

21.8

10

10 1/4″ (260mm) TK HD Blade/Bullet Cutterhead – 15″ (381mm) O.D.

ACH1014360HD

55

24.9

10

10 1/4″ (260mm) TK HD Spade/Bullet Cutterhead – 15″ (381mm) O.D.

ACH1014361HD

54

24.5

10

10 1/4″ (260mm) TK HD Bullet Cutterhead – 15″ (381mm) O.D.

ACH1014370HD

56

25.4

11

10 1/8″ (257mm) Apex Pilot Bit, 3 1/2″ API Reg. Pin

APB1018APX

33

15

11

10 1/8″ (257mm) Bullet Pilot Bit, 3 1/2″ API Reg. Pin

APB1018BUL

46

20.9
